NET POE CONVERTER EOC RECEIVER/LR1002-1EC-V3 DAHUA

Starting from

€44.80● 9 in stock

excl. VAT · incl. VAT: €54.21

From €44.80

Description

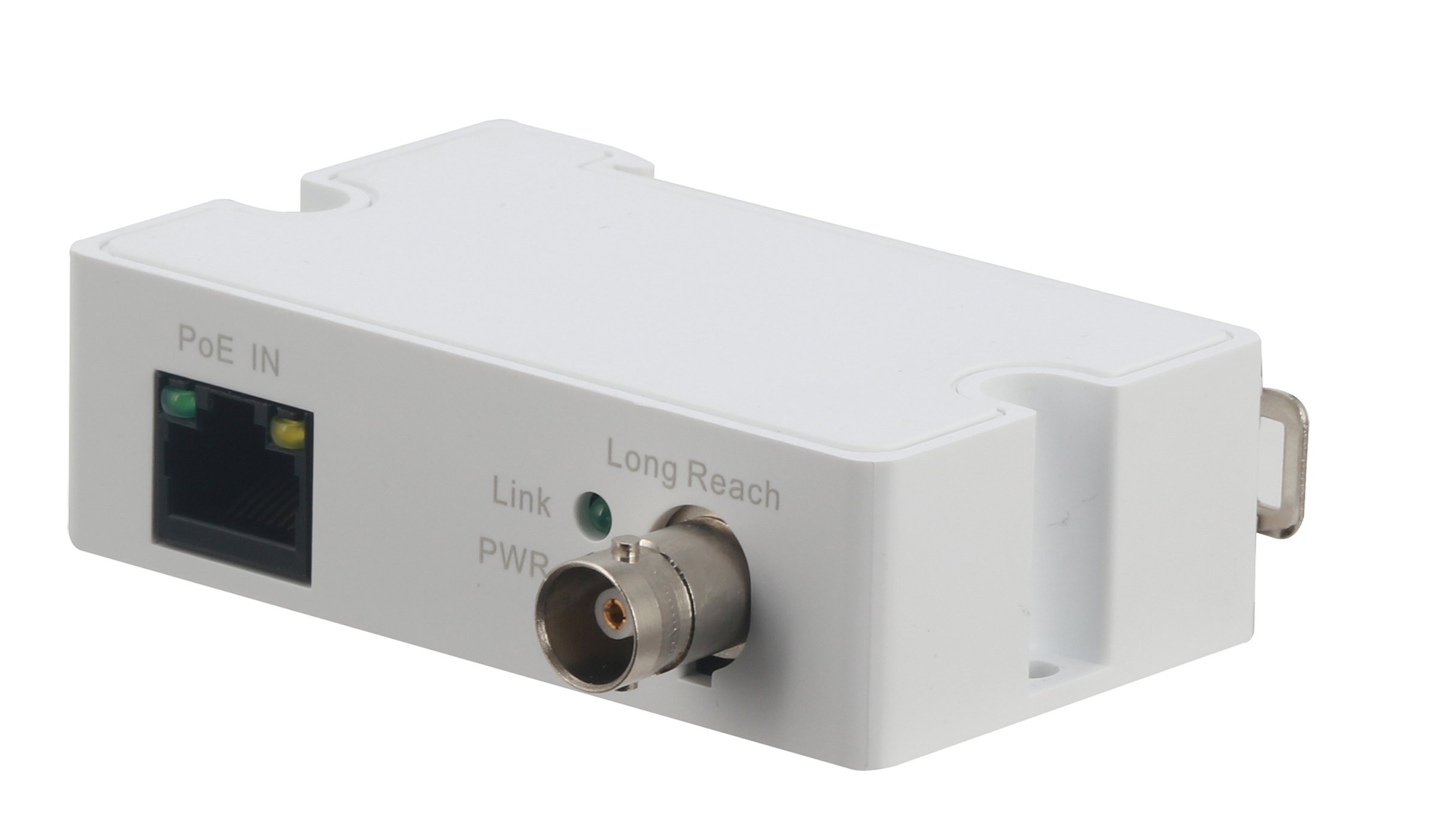

Dahua LR1002-1EC-V3 Single-Port Long Reach Ethernet over Coax Extender (receiver). Supports IEEE 802.3/802.3u standards. Features 1x RJ45 10/100Mbps and 1x BNC port. Supports RG59 coaxial cable up to 400m at 100Mbps or 1000m at 10Mbps. MDI/MDIX auto-adaptation and long-range PoE power supply via coaxial cable.

GENERAL
Manufacturer	DAHUA
Condition	New
SKU	1405038
DETAILS
Dimensions	79 × 52 × 23 mm
PoE	Yes
Ports	2
Throughput	10/100 Mbps
Weight	0.061 kg
Weight	61 g
Bnc ports	1
Coax cable	RG59
Coax connector	BNC
Coax range 100mbps	400
Coax range 10mbps	1000
Coax type	RG59
Eoc role	receiver
Ieee standards	IEEE 802.3, IEEE 802.3u
Max range 100mbps	400 m
Max range 10mbps	1000 m
Mdi mdix	Yes
Model	LR1002-1EC-V3
Pair device mpn	LR1002-1ET
POE delivery via	coaxial cable (lines 1,2,3,6)
Ports bnc	1
Ports rj45	1
Product net weight	0.061
Rj45 ports	1
Role	EoC Receiver
Unit box height	0.08
Unit box length	0.115
Unit box width	0.08
Unit calculated volume	0.0007944
Unit calculated weight	0.083
Units per pallet	0
Units per shipping box	60
Vendor homepage	www.dahuasecurity.com/ceen/products/All-Products/Transmission/Accessories/Ethern
